Manual 5 Axis Dovetail Vise Precision CNC Milling Vice 75150

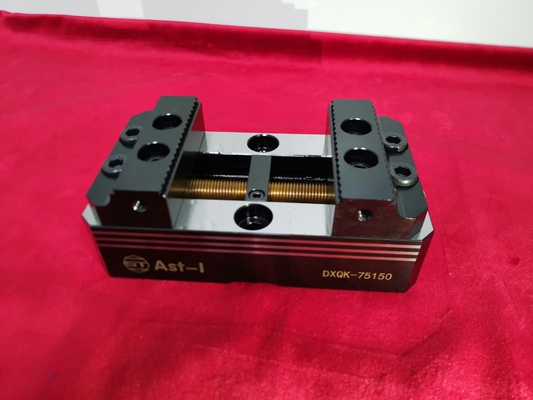

Large Image : Manual 5 Axis Dovetail Vise Precision CNC Milling Vice 75150

Product Details:

Place of Origin:	China
Brand Name:	AST
Model Number:	DXQ75150

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	carton packing size 16016095mm
Delivery Time:	5-8 working days
Payment Terms:	T/T
Supply Ability:	5-7Working days after confirm order

Contact Now

Manual 5 Axis Dovetail Vise Precision CNC Milling Vice 75150

Description

Name:	CNC Milling Vice	Cnc:	3axis Vise
OEM:	Provided	HRC:	55-57
Dovetail:	45° Dovetail Built Into Hard Jaw	Repeatable Positioning Accuracy:	Within 0.02mm
Highlight:	Manual 5 Axis Dovetail Vise , 5 Axis Dovetail Vise , CNC Milling Vice

Manual Precision Self Centering Vise 5-Axis Vise For Cnc Milling Machine 75150

CHARACTERISTICS

	Applications
	machine
	Configuration
	horizontal, screw, 5-axis, rotary, interchangeable jaws
	Other characteristics
	compact, self-centering, hardened steel, center-clamping, 5-axis machining, 5-face machining, with clamping system, for small workpieces, quick clamp, with base plate, for heavy loads
	Max. clamping force
	60 Nm

	Stroke
	Min.: 0 mm
Max.: 121 mm

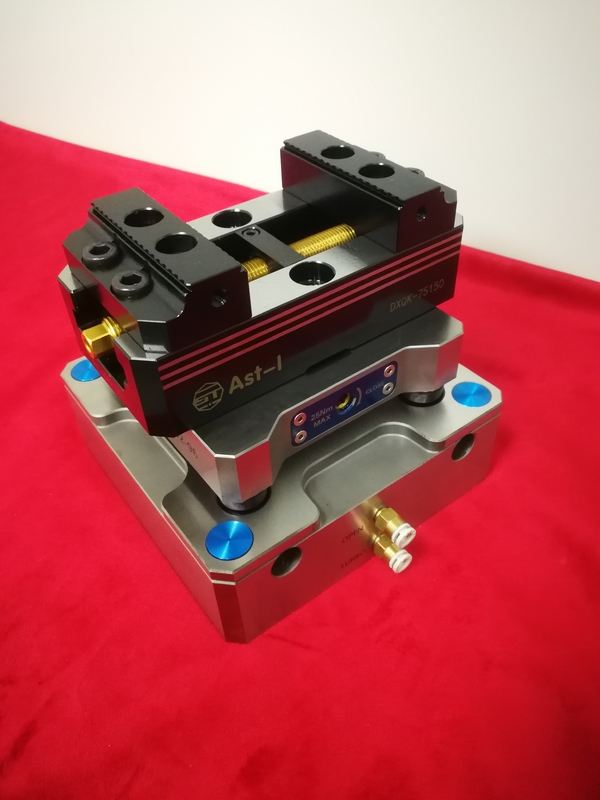

Manual 5 Axis Dovetail Vise Precision CNC Milling Vice 75150 2
