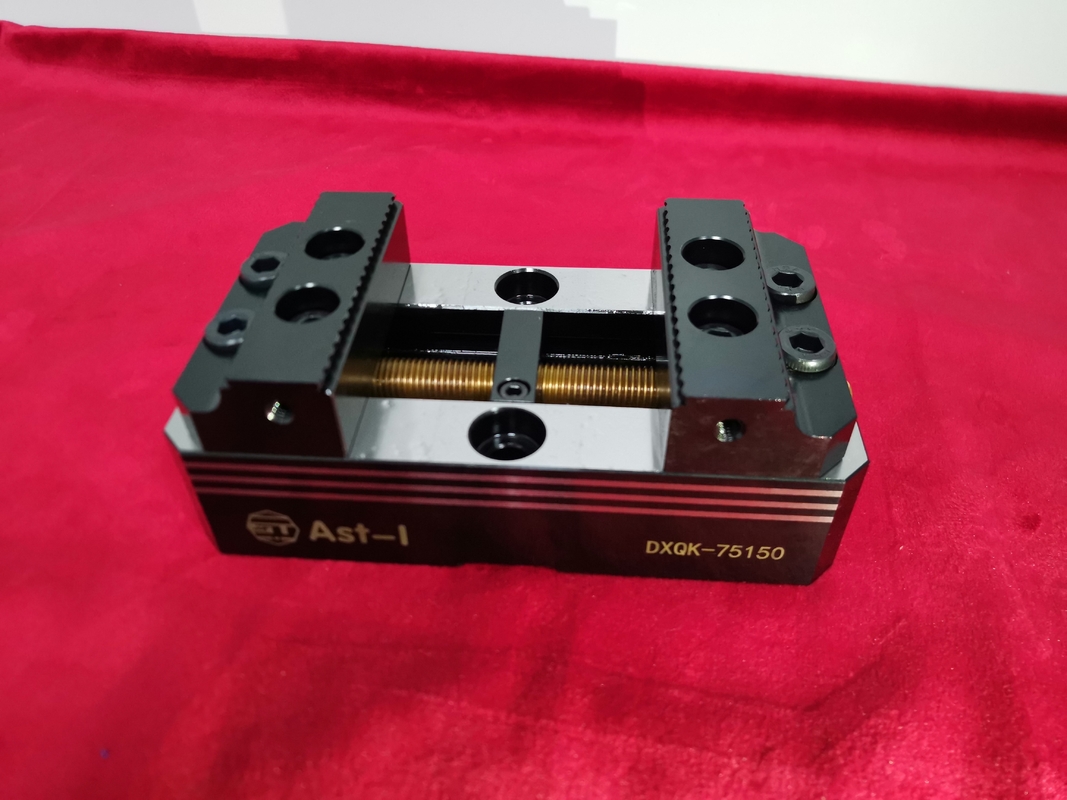

Clamping Force Self Centering Vice 60Nm Quick Change Vise Jaws

Clamping Force Self Centering Vice 60Nm Quick Change Vise Jaws
Clamping Force Self Centering Vice 60Nm Quick Change Vise Jaws
Clamping Force Self Centering Vice 60Nm Quick Change Vise Jaws Clamping Force Self Centering Vice 60Nm Quick Change Vise Jaws Clamping Force Self Centering Vice 60Nm Quick Change Vise Jaws

Large Image :  Clamping Force Self Centering Vice 60Nm Quick Change Vise Jaws

Product Details:
Place of Origin: China
Brand Name: AST
Model Number: DXQ75150
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: carton packing size 160*160*95mm
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 5-7Working days after confirm order
Contact Now

Clamping Force Self Centering Vice 60Nm Quick Change Vise Jaws

Description
Features: Quick Change Name: Self-Centering Vice
Cnc: 3/4/5axis Vise Features: Serrated Jaws For Strong Bite And Dovetail Jaws For Rigid Clamp By Dual Contact Are Available.
Material: Steel Accessories: Various Jaws, Torque Wrenches Etc.
Highlight:

Self Centering Vice 60Nm

,

Self Centering Vice

,

Quick Change Vise Jaws

Quick Fasteners For Changeover Machine Precision Self Centering Vise 3/4/5-Axis 75150



Application

To clamp workpieces. Mounting on pallets. Mounting directly on the machine table.



DESCRIPTION

CENTERING CLAMPS -Feature
-Self-Centering Vise -The jaws move toward the center.
-This always provides stable workpiece centering settings.
-Ideal for 5-axis machining.
-Two Choices of Jaw Style-
-Serrated jaws for strong bite and dovetail jaws for rigid clamp by dual contact are available.
-Choose the jaw style depending on application.
-Clamping Force at 20 kN Small clamping area (serrated jaw: 3.5 mm / dovetail jaw: 3 mm) saves the loss of raw material.
-Compact Body -Can be easily mounted on small machine pallet.
Clamping range:0-121mm
Technical Information
- Clamping Force: 60 Nm
Allowable Tightening Torque: 60 Nm -
Materials- Body: steel, Induction hardened, Black oxide finished, Precision ground Jaws Bases: steel, Black oxide finished

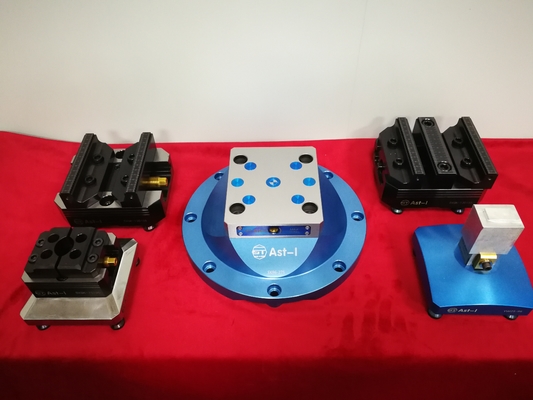

Clamping Force Self Centering Vice 60Nm Quick Change Vise Jaws 0


Clamping Force Self Centering Vice 60Nm Quick Change Vise Jaws 1

Clamping Force Self Centering Vice 60Nm Quick Change Vise Jaws 2Clamping Force Self Centering Vice 60Nm Quick Change Vise Jaws 3
Clamping Force Self Centering Vice 60Nm Quick Change Vise Jaws 4
