Compact Multi Power Axis Fixtures Alloy Steel 5th Axis Self Centering Vise

Compact Multi Power Axis Fixtures Alloy Steel 5th Axis Self Centering Vise
Compact Multi Power Axis Fixtures Alloy Steel 5th Axis Self Centering Vise
Compact Multi Power Axis Fixtures Alloy Steel 5th Axis Self Centering Vise Compact Multi Power Axis Fixtures Alloy Steel 5th Axis Self Centering Vise Compact Multi Power Axis Fixtures Alloy Steel 5th Axis Self Centering Vise

Large Image :  Compact Multi Power Axis Fixtures Alloy Steel 5th Axis Self Centering Vise

Product Details:
Place of Origin: China
Brand Name: AST
Model Number: DXQ150250
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: carton packing 205*180*124mm
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 5-7Working days after confirm order
Contact Now

Compact Multi Power Axis Fixtures Alloy Steel 5th Axis Self Centering Vise

Description
Cnc: 5th Axis Vise Model: 150250
Size: 150x250x94m Material: Alloy Steel
Presale Provide: Provide 3d File Color: Black
Highlight:

Multi Power Axis Fixtures

,

Axis Fixtures Alloy Steel

,

5th Axis Self Centering Vise

 Compact Multi-Power 5-Axis Self Centering Vise For Cnc Milling Machine 150250

  • Extremely High Accuracy and Repeatability
  • Special MULTI-POWER design enhances clamping force of 5000KG
  • Suitable for CNC 5-Axis Machining Centers, horizontal and vertical CNC Machining Centers
    • 1. Compact design with big jaw opening, which enhances machine space utilization.
    • 2.Vise jaws are made of High quality Tool Steel and Hardened to achieve HRC 55 , which makes vise clamp the workpieces easily and firmly.
    • 3.Vise body is made of alloy steel and its slideways are hardened to HRC 52 , which makes the vise tensile strength with high precision accuracy.
    • 4.The patented MULTI-POWER SYSTEM is built of high grade BEARING STEEL which doubles the clamping force. Adjustable clamping force 5000kg. With this special patented system the pressure is more consistent and eliminates oil leakage and maintenance problems associated with Hydraulic Vises.
    • 5.Special Leadscrew Covers protect Leadscrew from swarf and avoid any possible damage to internal parts.

Product Description:



Size: 150x250x94m
Clamping range: 0-240mm
Clamp body width: 150mm
Maximum torque: 100Nm
Weight: 16Kg

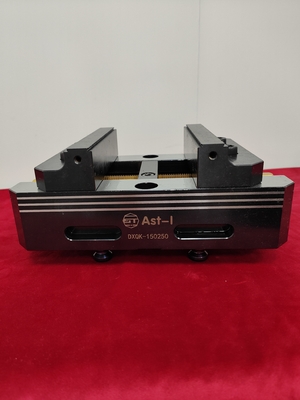

Compact Multi Power Axis Fixtures Alloy Steel 5th Axis Self Centering Vise 0



Max opening 155mm self centering 5 axis vise

1. Material: steel.

2. Warranty: 1 years

5. max clamping range: 155mm

Product Name
self centering vise DXQ150250
Material
stainless steel
Used
Four-axis, five-axis, CNC indexing plate, precision machining of vertical horizontal CNC milling machine.
Advantage
Easy to use,precise clamping.

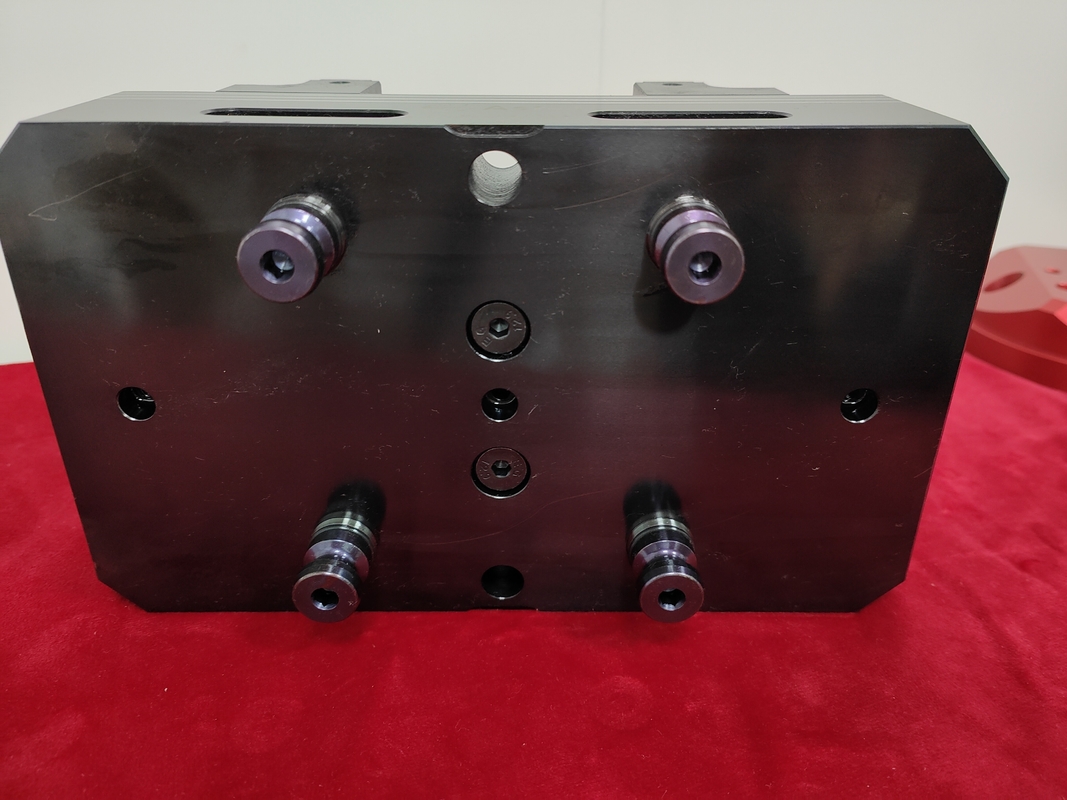

Compact Multi Power Axis Fixtures Alloy Steel 5th Axis Self Centering Vise 1Compact Multi Power Axis Fixtures Alloy Steel 5th Axis Self Centering Vise 2Compact Multi Power Axis Fixtures Alloy Steel 5th Axis Self Centering Vise 3Compact Multi Power Axis Fixtures Alloy Steel 5th Axis Self Centering Vise 4Compact Multi Power Axis Fixtures Alloy Steel 5th Axis Self Centering Vise 5Compact Multi Power Axis Fixtures Alloy Steel 5th Axis Self Centering Vise 6
