Product Details:
|
| Name: | Modular Precision Machine Vice | Features: | Small |
|---|---|---|---|
| Suitable For: | 3/4/5 Axis Riser | Material: | Alloy Steel |
| Repeat Accuracy: | Within 0.02mm | Clamping Range: | 0-77mm |
| Highlight: | 155mm Modular Precision Machine Vice,Modular Precision Machine Vice 2.5Kg,Small CNC Vise |
||

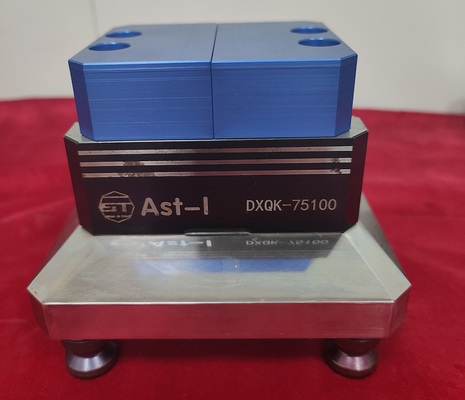

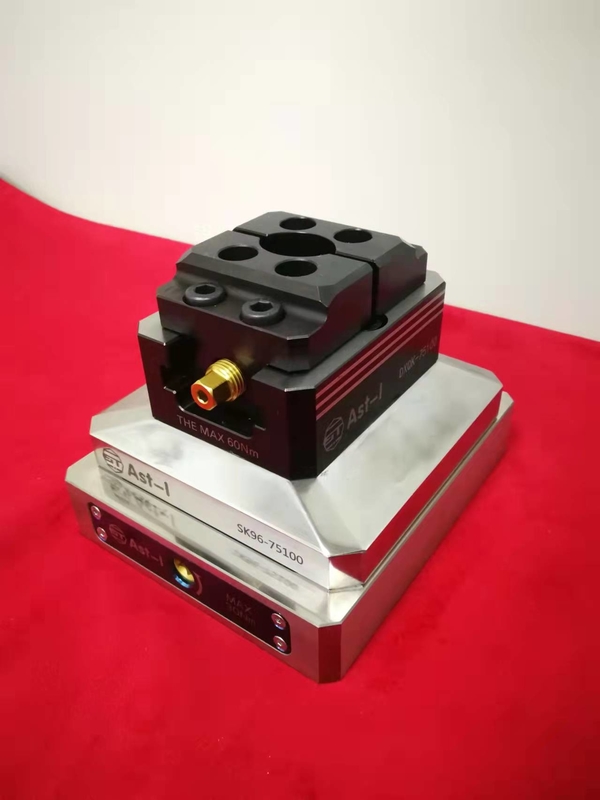

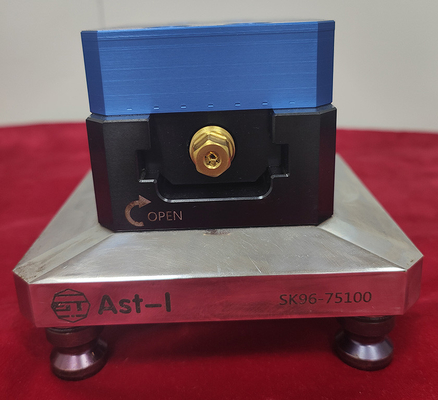

Manual Fixture 5-Axis Self Centering Vise For Cnc Milling Machine 75100-96
Product Description:
vise size
Size:75x100x56m
Clamping range:0-77mm
Clamp body width:75mm
Maximum torque:60Nm
Weight:2.5Kg
This vise with 96 series holding.without 96mm to 52mm Adapter!
Max opening 155mm self centering 5 axis vise
1. Material: steel.
2. Warranty:1 years
5.max clamping range:0-77mm
