Product Details:
|
| Surface Treatment:: | Black Anodized | Material: | Steel |
|---|---|---|---|
| Sample Leadtime: | 5-7 Working Days | Machining Equipment: | 3/4/5 Axis Cnc Machining Centres |
| Maximum Diameter: | 90mm | Drawing Format: | 2D/(PDF/CAD)3D(IGES/STEP) |
| Highlight: | 90mm CNC Machining Parts,CNC Machining Parts Blackening,Steel Machining Parts Q345B |
||

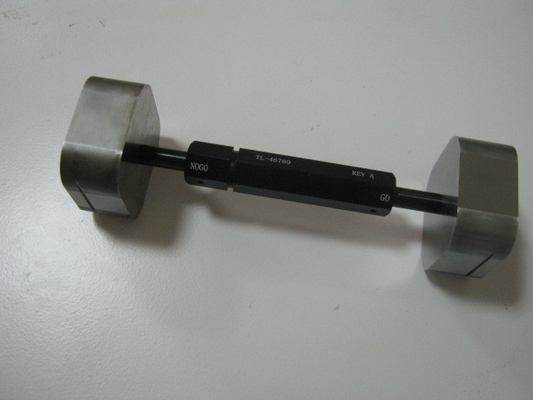

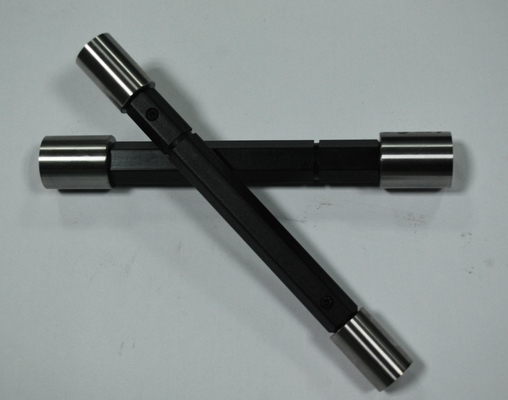

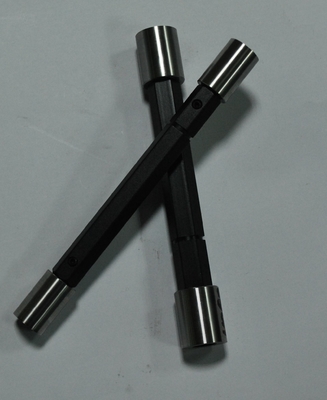

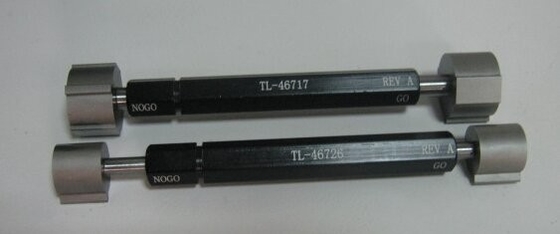

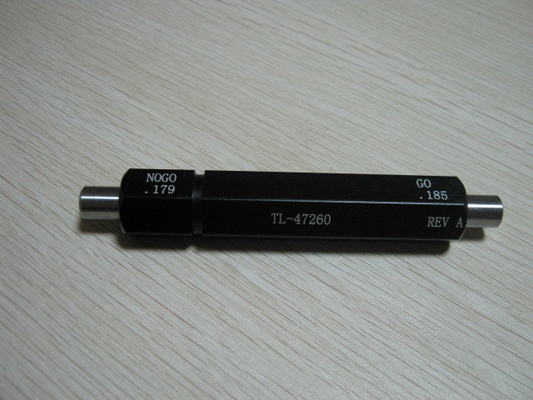

Customized CNC Machining Metal Steel Precision Inspection Tool Customized 21
The parts are processed by a special process, without deformation after processing, and have permanent dimensional accuracy.
The surface anodized treatment increases the surface hardness and wear resistance of the parts, and it is beautiful and elegant, and the processing knife lines cannot be seen. Precision turning and grinding ensure that the parallelism between the spindle and the mounting surface is within 0.01mm.
Application:
It is suitable for accelerated machining centers, mirror machining centers (high-gloss machines), glass processing machines, and motor mounting supports. It is also suitable for machining centers with low spindle cutting force.
| Business Type | Factory / Manufacturer |
| Service | CNC Machining |
| Turning and Milling | |
| CNC Turning | |
| OEM Parts | |
| Material | 1). Aluminum: AL 6061-T6, 6063, 7075-T etc |
| 2). Stainless steel: 303,304,316L, 17-4(SUS630) etc | |
| 3). Steel: 4140, Q235, Q345B,20#,45# etc. | |
| 4). Titanium: TA1,TA2/GR2, TA4/GR5, TC4, TC18 etc | |
| 5). Brass: C36000 (HPb62), C37700 (HPb59), C26800 (H68), C22000(H90) etc | |
| 6). Copper, bronze, Magnesium alloy, Delrin, POM,Acrylic, PC, etc. | |
| Finish | Sandblasting, Anodize color, Blackening, Zinc/Nickl Plating, Polish, |
| Power coating, Passivation PVD, Titanium Plating, Electrogalvanizing, | |
| electroplating chromium, electrophoresis, QPQ(Quench-Polish-Quench), | |
| Electro Polishing,Chrome Plating, Knurl, Laser etch Logo, etc. | |
| Main Equipment | CNC Machining center(Milling), CNC Lathe, Grinding machine, |
| Cylindrical grinder machine, Drilling machine, Laser Cutting Machine,etc. | |
| Drawing format | STEP,STP,GIS,CAD,PDF,DWG,DXF etc or samples. |
| Tolerance | +/-0.01mm ~ +/-0.05mm |
| Surface roughness | Ra 0.1~3.2 |
| Inspection | Complete inspection lab with Micrometer, Optical Comparator, Caliper Vernier,CMM |
| Depth Caliper Vernier, Universal Protractor, Clock Gauge, Internal Centigrade Gauge | |
| Capacity | CNC turning work range: φ0.5mm-φ150mm*300mm |
| CNC milling work range: 510mm*1020mm*500mm |
customized metal machining centre anodized aluminum stainless steel titanium products milling cnc spare parts machining servic
Packaging Details
Our workship photos:
