Product Details:
|
| Simple Design: | Quickly Reverse Jaws | Size: | 75mm X 100mm X 56mm |
|---|---|---|---|
| Jaw Width: | 75mm | Features: | Gripper Teeth + Dovetail |
| Repeating Accuracy: | Less Than 0.02mm | Jaws Feature: | Reversible / Quick-change Jaws |
| Highlight: | Reversible Axis Fixtures,Axis Fixtures Hardened,5 Axis Dovetail Fixture |
||

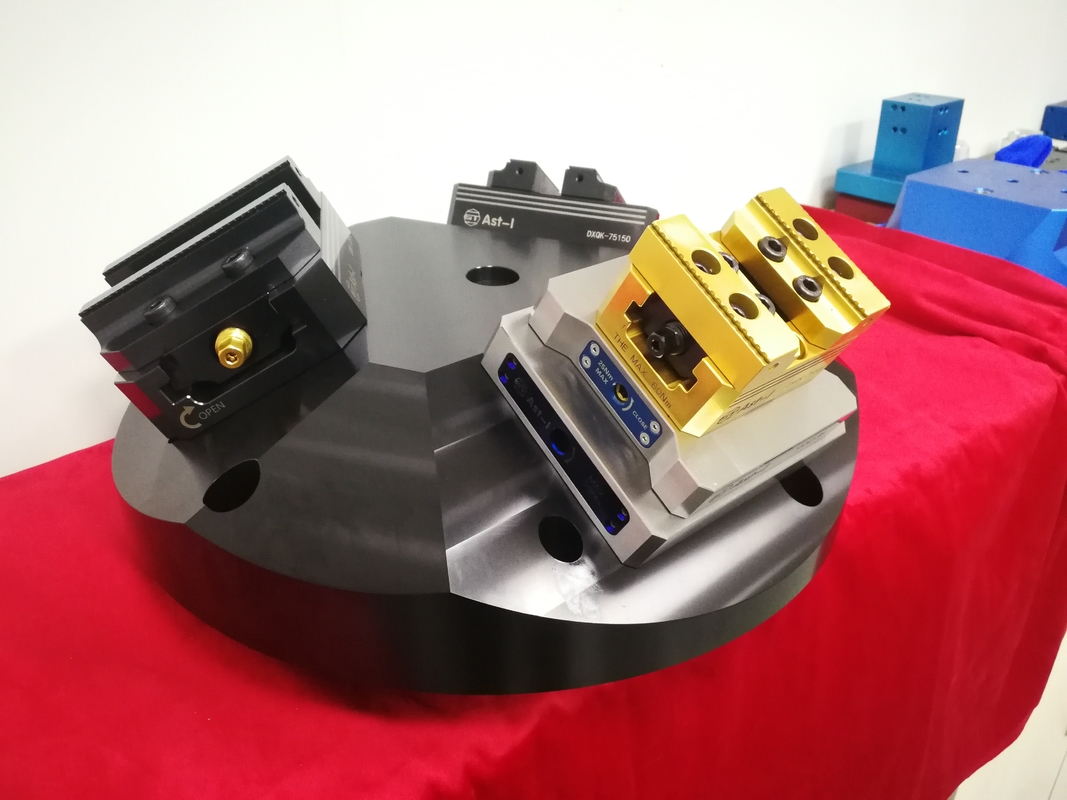

Self Centring Precision Vise Is Suitable For 5 Axis Riser Usage 75100T
We can customized the riser height and installation hole according to your workingholders condition!
Utilzing the zero point quick change system or another 52mm / 96mm pull stud quick change system? Simply thread in the pull studs and the vise is now ready for quick change.
Direct mount all AST Axis vise from the top down utilizing standard socket head cap screws. Bolt the vise directly to the t-slots on the machine table.
Features:
Less setup time means less cost.
High reliability, repeat positioning accuracy within0.02mm.
Hardened surface and position, wear resisitance, long life.
A single contact interface can be used for almost all machine tools.
Through the use of zero positioning system, can greatly optimize the production process of clamping and changing.
AST advocates continuous research and development and innovation, and contributes to the improvement of production efficiency and processing accuracy in the manufacturing industry.
Product Description:
Size: 75x100x56m
Clamping range: 0-77mm
Clamp body width: 75mm
Maximum torque: 60Nm
Weight: 2.5Kg
Max opening 155mm self centering 5 axis vise
1. Material: steel.
2. Warranty: 1 years
5. max clamping range: 0-77mm
