Product Details:
|
| Size: | 105*156*106MM | Material: | Steel |
|---|---|---|---|
| Acc: | 96 Pull Stud | Application: | 5 Axis Working Hold |
| Material Of Red Part: | Alminum | Features: | Maximize Changeout Efficiency |
| Highlight: | Precision Zero Point Clamping,Zero Point Clamping Aluminum,Manual Clamping Pull Stud |
||

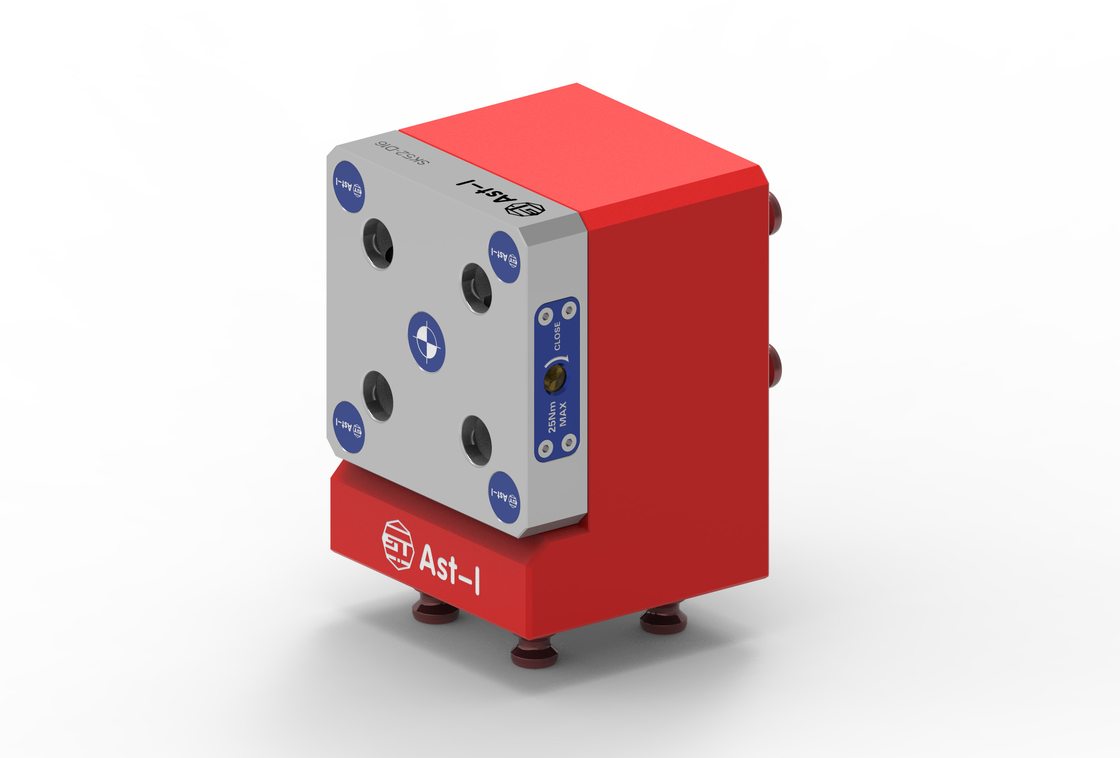

A riser improves accessibility in 5-sided machining and can either be mounted directly and firmly on the machine table or set up and removed on a zero-point plate. It is available in round and rectangular versions in heights of 80 and 100 mm. The zero-point plates are pinned, aligned and mounted to the riser via bushings.
No need to disassemble and calibrate time.

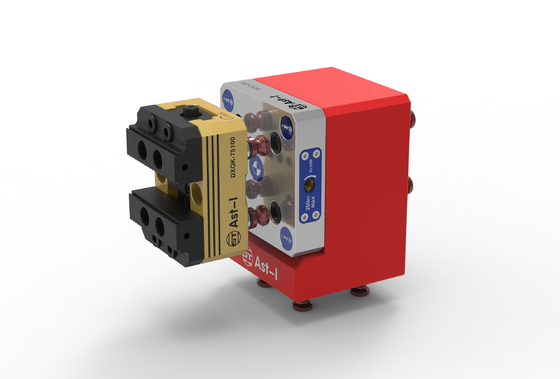

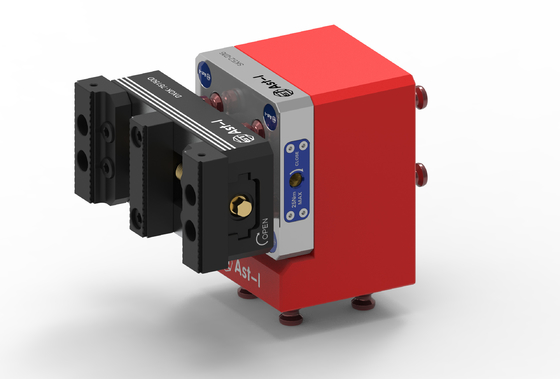

Details: 96 style uprise vise

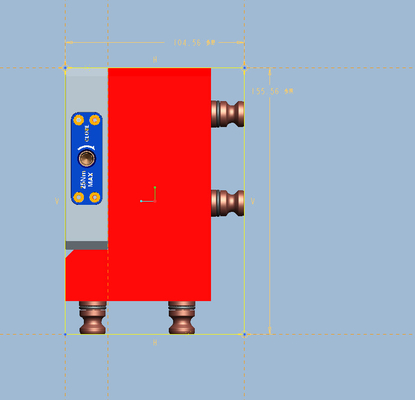

Size:105*156*106MM
Repeat position:0.005mm
Locking force:22KN (4pcs pull stud)
Material: hard steel + aluminum
Weight:
