Product Details:
|
| Application: | 5 Axis Working Hold | Material: | Aluminum |
|---|---|---|---|
| Acc: | 96 Pull Stud | Material Of Red Part: | Alminum |
| Features: | Maximize Changeout Efficiency | ||
| Highlight: | Manual Zero Point Clamping,Riser Zero Point Clamping,0.005mm Quick Change Clamping System |
||
A riser improves accessibility in 5-sided machining and can either be mounted directly and firmly on the machine table or set up and removed on a zero-point plate. It is available in round and rectangular versions in heights of 80 and 100 mm. The zero-point plates are pinned, aligned and mounted to the riser via bushings.
No need to disassemble and calibrate time.

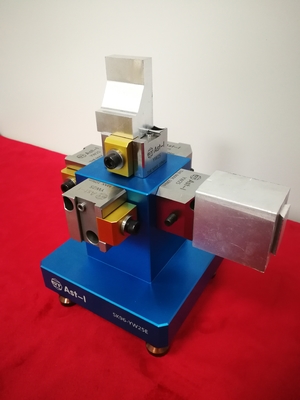

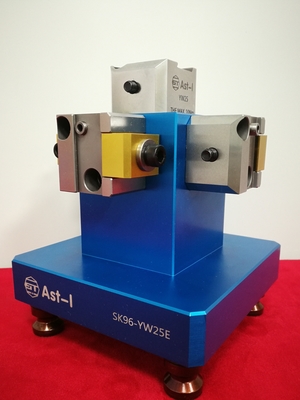

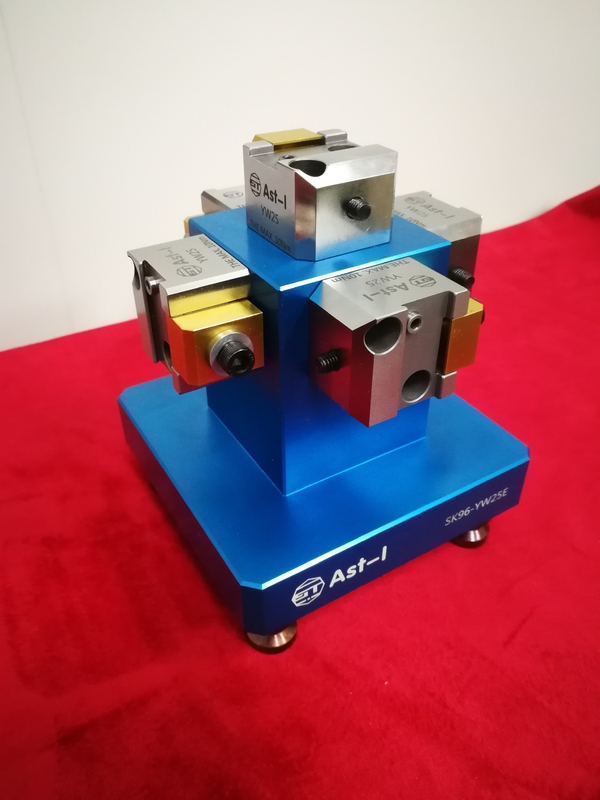

Details: 96 style uprise vise
Size:158*126*126
Repeat position:0.005mm
Locking force:22KN (4pcs pull stud)
Material: hard steel + aluminum
Weight:
