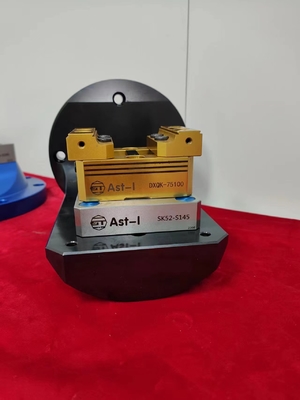

Manual 3 / 5 Axis Milling Vise Aluminum Jaws 75Nm Maximum Torque

Manual 3 / 5 Axis Milling Vise Aluminum Jaws 75Nm Maximum Torque
Manual 3 / 5 Axis Milling Vise Aluminum Jaws 75Nm Maximum Torque
Manual 3 / 5 Axis Milling Vise Aluminum Jaws 75Nm Maximum Torque Manual 3 / 5 Axis Milling Vise Aluminum Jaws 75Nm Maximum Torque Manual 3 / 5 Axis Milling Vise Aluminum Jaws 75Nm Maximum Torque

Large Image :  Manual 3 / 5 Axis Milling Vise Aluminum Jaws 75Nm Maximum Torque

Product Details:
Place of Origin: China
Brand Name: AST
Model Number: DXQ130155
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: carton packing 205*180*124mm
Delivery Time: 5-8 working days
Payment Terms: T/T
Supply Ability: 5-7Working days after confirm order
Contact Now

Manual 3 / 5 Axis Milling Vise Aluminum Jaws 75Nm Maximum Torque

Description
Cnc: 3/5 Axis Vise FEATURES: Quick-Change
Material: Alloy Steel How To Use: Manual
Maximum Allowed Torqueal: 75Nm Jaws: Aluminum
Highlight:

Aluminum 3 Axis Milling Vise

,

3 Axis Milling Vise

,

5 Axis Milling Vise

Manual With Aluminum Jaws Self Centering Vise For Cnc Milling Machine 130155​



Jaws can be exchange freely.

The blue jaws is aluminum material.

Suitable for light cutting



Product Description:



Size: 130x150x73.5m
Clamping range: 0-150mm
Clamp body width: 130mm
Maximum torque: 75Nm
Weight: 7.0Kg

Manual 3 / 5 Axis Milling Vise Aluminum Jaws 75Nm Maximum Torque 0



Max opening 155mm self centering 5 axis vise

1. Material: steel.

2. Warranty: 1 years

5. max clamping range: 155mm

Product Name
self centering vise DXQ130155
Material
stainless steel
Used
Four-axis, five-axis, CNC indexing plate, precision machining of vertical horizontal CNC milling machine.
Advantage
Easy to use,precise clamping.

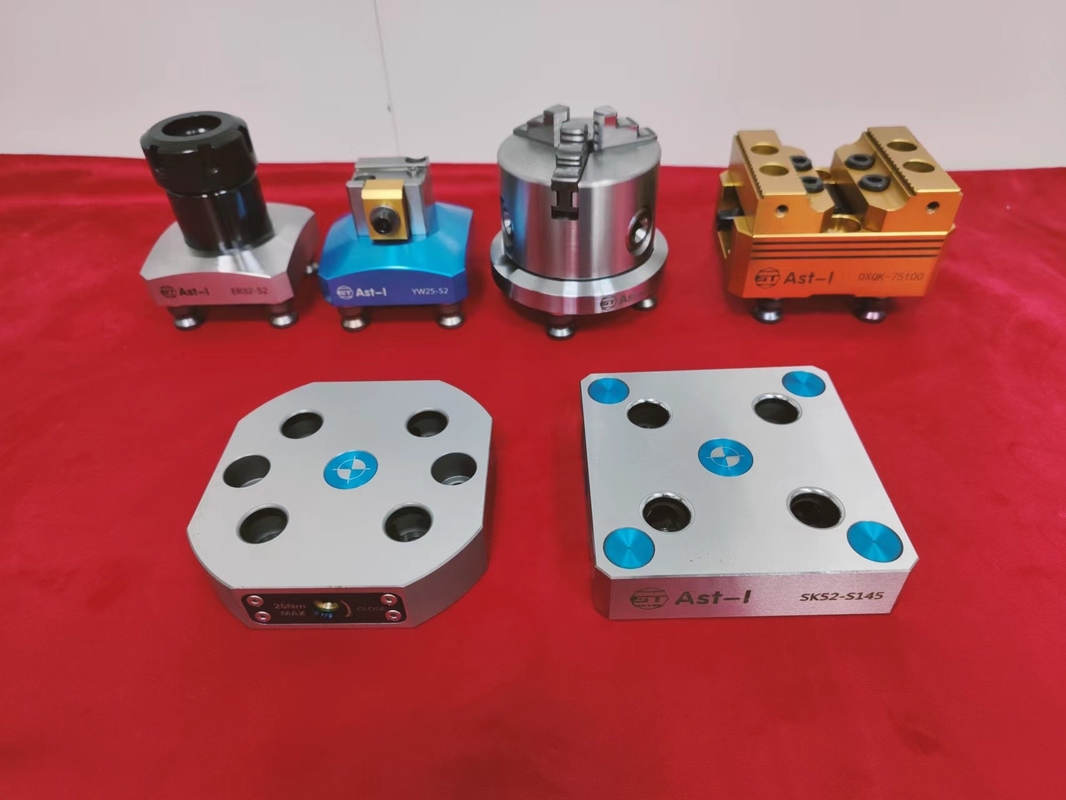

Manual 3 / 5 Axis Milling Vise Aluminum Jaws 75Nm Maximum Torque 1Manual 3 / 5 Axis Milling Vise Aluminum Jaws 75Nm Maximum Torque 2Manual 3 / 5 Axis Milling Vise Aluminum Jaws 75Nm Maximum Torque 3Manual 3 / 5 Axis Milling Vise Aluminum Jaws 75Nm Maximum Torque 4Manual 3 / 5 Axis Milling Vise Aluminum Jaws 75Nm Maximum Torque 5

Manual 3 / 5 Axis Milling Vise Aluminum Jaws 75Nm Maximum Torque 6



A)How long will it take to ship?
Standard products are generally shipped in 3-7 days, while non-standard products are subject to production time.

B)How about the precision of the product?
Repeated locating precision of our products is less than 0.02mm.

C)What is the minimum order quantity?
We support one-piece orders.

D)What are the payment terms?
We support T/Ttransfers.

E)Does it support customization?
We have our own factory and support customization.

F)Why choose your products?
High quality, high product precision and competitive price
